2D Robot Positioning Guiding System_2D Robot Positioning Guiding System_Solutions

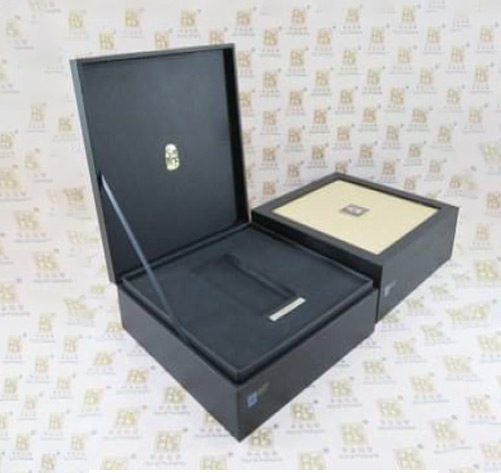

Tiantiangai refers to a kind of box style, which needs to be placed accurately on the corresponding position of the ground cover. Tiandi Gai is widely used in various packaging industries such as cigarettes, medicines, daily necessities, handicrafts, mobile phones, etc.
At present, most packaging companies rely on assembly line workers to fit the ceiling and floor cover through eyes. The problems they face are as follows:

• Low efficiency of paste box

• Poor real-time performance

• Affected by subjective factors

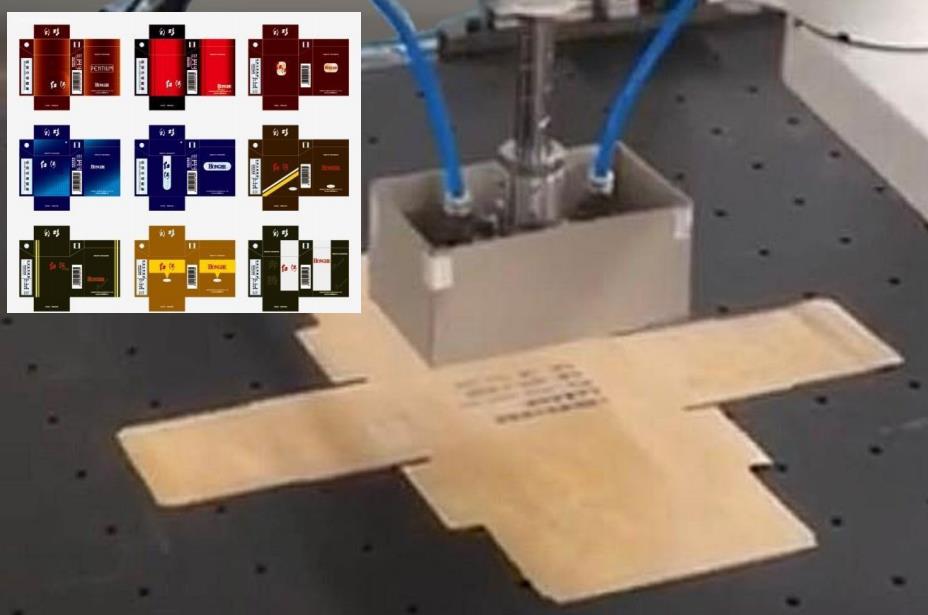

system function：Through the camera to quickly locate the ground cover, guide the manipulator to place the roof cover accurately at the designated position of the ground cover, so as to realize fast box placement.

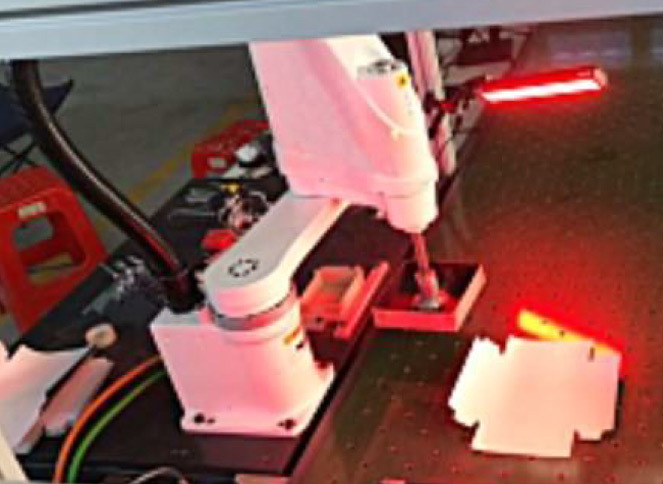

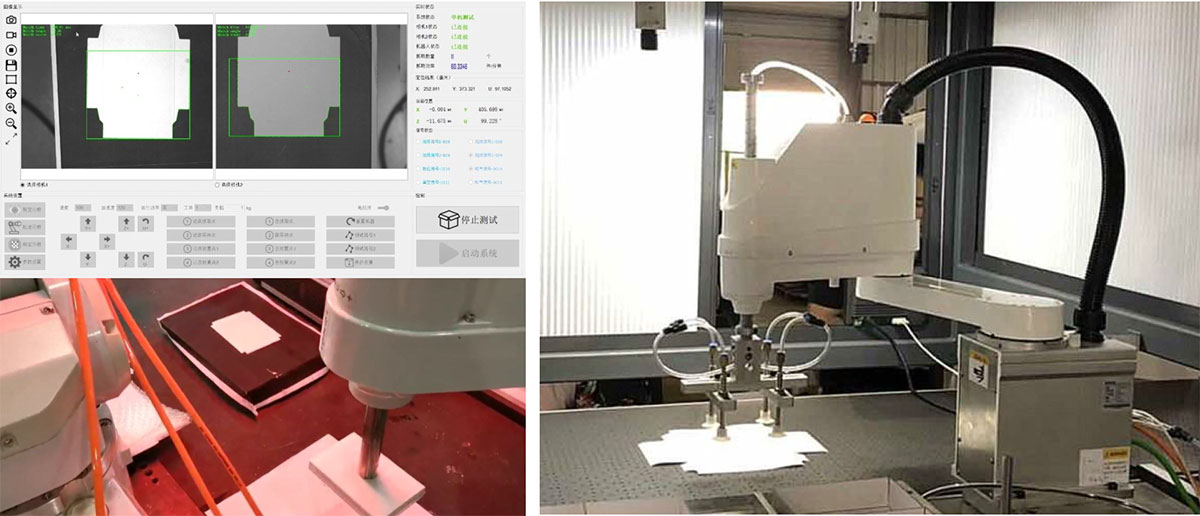

system composition：Industrial camera, industrial computer, SCARA manipulator system

positioning accuracy：±0.2mm

Wide range of application

Compatible with single camera and dual camera mode, it can meet almost all sizes of boxes on the market.
Size range：
30mm-800mm

Quick product replacement

Grab the product and save it as a folder. When switching products, just open the new folder.
New product warehousing time：
5-10minute

Calibration is quick

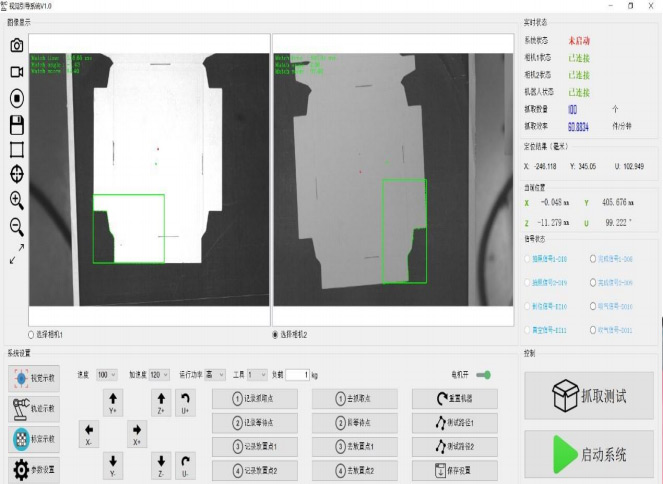

According to the operation manual, operate on the system interface, without relying on human eyes to correct the product posture.
Calibration time：
3-10minute

Automatic deviation compensation

When the new product is put into storage, the system will automatically calculate the deviation compensation value of the template, which saves the operator to gather the compensation value.

cigarette case

Kit

Mobile phone box

Gift box
